GB1 - Glassbreak

Overview

The glassbreak sensor offers protection for one or more windows or glass doors.  The sensor features a dual-stage detection technology meaning that it listens for the "thud" or shock of the window being hit AND the sound (frequency) of the glass shattering/breaking to trigger the alarm.  Glassbreak sensors offer one of the earliest forms of intrusion protection.


Specifications

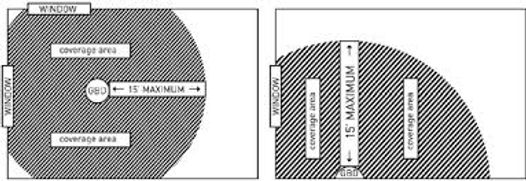

glassbreak diagram.jpeg

  • Transmits at a frequency of 345 Mhz

  • Signal range of 350 ft (open air)

  • Temperature range of 32 - 120

       degrees F

  • Requires 2 X CR2032 lithium batteries

  • Typical battery life of 5 years

  • 15' range of protection.  360 degree coverage when ceiling mounted; 180 degree coverage when wall mounted.

Installation

  1. Identify all windows and/or glass doors that are to be covered.

  2. Identify a location where the sensor can "see" all the windows, without obstructions, and is also within 15' of all areas to be protected.

  3. Remove sensor, and batteries from packaging.

  4. Install batteries.

  5. Install backplate using 3 drywall screws, or wall-anchors and provided screws.

  6. Secure sensor to backplate by aligning markings on backplate and sensor and then rotating clockwise.

Programming

  1. Enter Zone Programming and select the zone you wish to program the sensor into

  2. Tap Edit Zone

  3. Select sensor type (Type 3, Perimeter)

  4. Select the equipment code (0864 for GB1)

  5. Type in the TXID serial number, or select Learn and then tamper the glassbreak by removing the sensor from the back plate and then reattaching it.

  6. Under Equipment Age select New or Existing

  7. Choose an appropriate voice descriptor.

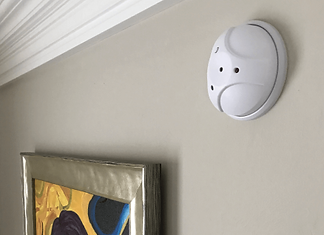

installed-wireless-glass-break-detector.

Troubleshooting
