IQ - Glassbreak

Overview

The glassbreak sensor offers protection for one or more windows or glass doors.  The sensor features a dual-stage detection technology meaning that it listens for the "thud" or shock of the window being hit AND the sound (frequency) of the glass shattering/breaking to trigger the alarm.  Glassbreak sensors offer one of the earliest forms of intrusion protection.

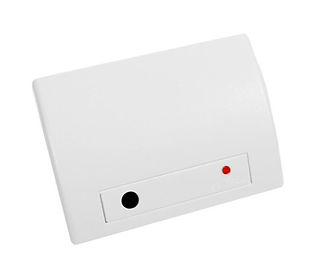

qolsys-iq-glass-s-encrypted-glass-break-

Specifications

  • Transmits at a frequency of 319 Mhz

  • Signal range of 350 ft (open air)

  • Temperature range of 15 - 120

       degrees F

  • Requires 2 X CR123A lithium batteries

  • Typical battery life of 5 years

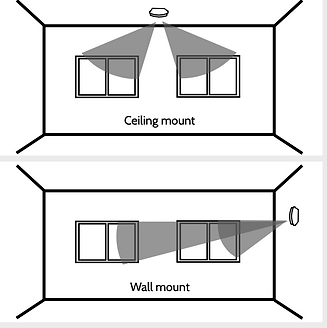

  • 20' range of protection.  360 degree coverage when ceiling mounted; 180 degree coverage when wall mounted.


Installation

  1. Identify all windows and/or glass doors that are to be covered.

  2. Identify a location where the sensor can "see" all the windows, without obstructions, and is also within 20' of all areas to be protected.

    1. Note:  Blinds, drapes, and other window coverings will reduce the effective range of the sensor.​

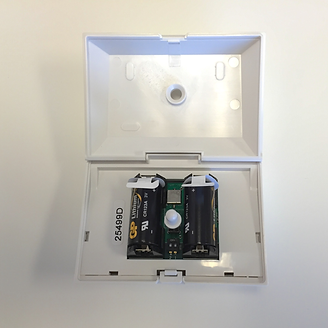

  3. Remove sensor, and batteries from packaging.

  4. Mount sensor between 6.5 -8.5' high, either on the wall or ceiling.

  5. Remove battery tab

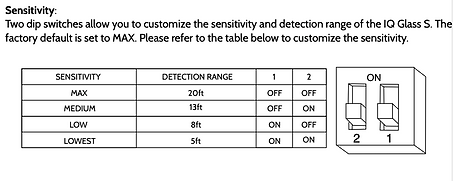

  6. Adjust sensitivity as necessary

  7. Replace face plate

Programming

  1. Place panel in auto-learn mode

  2. Tamper sensor

  3. Enter customized name

  4. Customize any other settings as necessary


Troubleshooting

Screen Shot 2020-11-13 at 10.44.12 AM.pn
Screen Shot 2020-11-13 at 10.44.39 AM.pn
qolsys-iq-glass-s-encrypted-glass-break-
